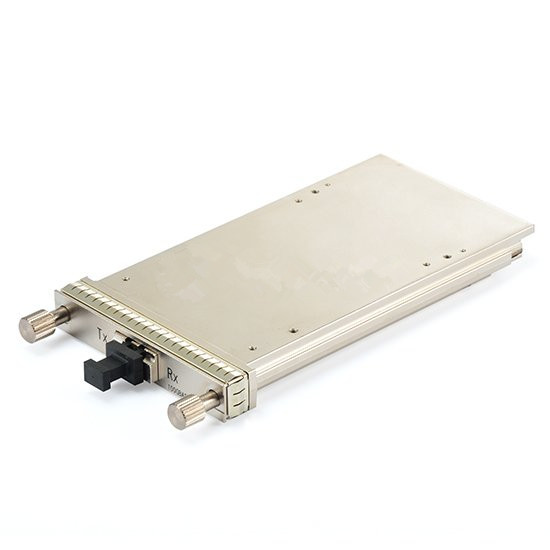

40Gb CFP Transceiver 40km 1270nm ～1331nm

Features:

Hot-pluggable CFP form factor

Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates

Power dissipation < 6W

RoHS-6 compliant (lead-free)

Commercial temperature range -5°C to 75°C

Single 3.3V power supply

Maximum link length of 10km on Single Mode Fiber (SMF)

Uncooled 4x10Gb/s CWDM transmitter

4x10G MLD electrical interface

Duplex SC receptacles

Built-in digital diagnostic functions

Applications:

40GBASE-LR4 40G Ethernet

OTN OTU3 C4S1-2D1

OTU3e1 and OTU3e2

Specifications:

Model Number	Product Description
HG-CFP+HG	40Gb CFP Transceiver 40km 1270nm ～1331nm 0℃～70℃
